GX16 Aviation Connector Waterproof IP68 Panel Mounting Style 2~10 Pin

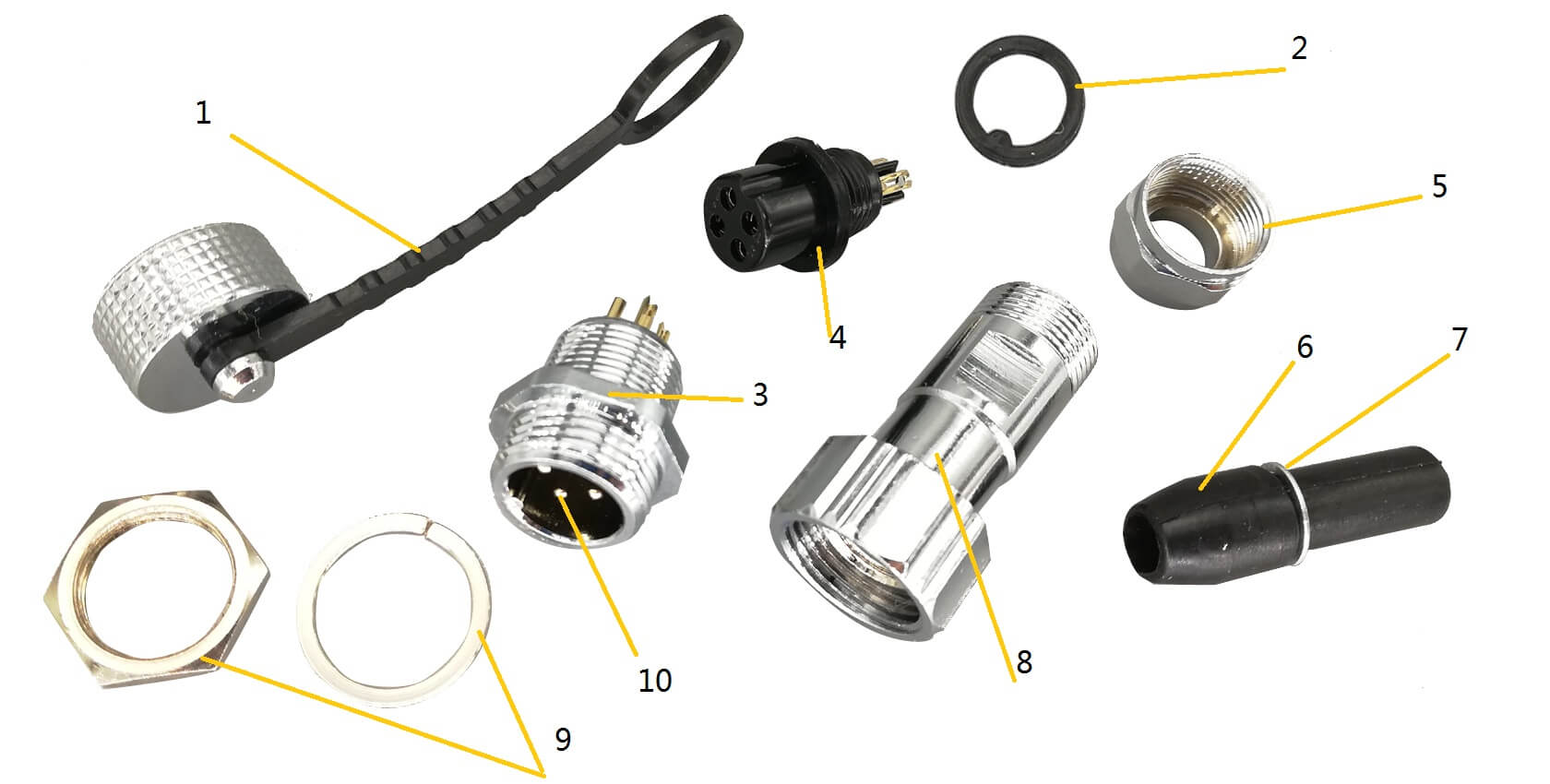

Structure
1. protective cap, steel part is zinc alloy material, plastic part is rubber
2. O-ring, rubber for waterproofing
3. male connector,zinc alloy material with nickel plated
4. Female connector, black color bakelte
5. nut, zinc alloy with nickel plated
6. protective sleeve of cable, grip the cable with 5 together for waterproofing
7. washer, stainless steel
8. housing of female connector,zinc alloy with nickel plated
9. nut and spring washer for panel mounting
10. contact pins, brass with silver plated
Electrical data
| pins | 2 pin 3pin | 4pin | 5pin | 6 7 8 9 10 pin |
| rated current | 7A | 5A | 5A | 4A |
| working voltage | 200V |
| Contact resistance | 3mΩ max |
| Insulation resistance | 1500MΩ |
| Withstand voltage | 1500V |
| Contact hole size Φmm | 2.45 | 2.45 | 2.00 | 1.15 |
All familier
About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
1.Panel mounting model-- front mounting
2.Cable docking model
3.Panel mounting model--Rear mounting
4.Panel mounting model with round flange
5.Panel mounting model with square flange
6.Panel mounting model with rhombus flange
7.PCB welding model with elbow pins
8.PCB welding model with straight pins
9.Panel mounting model with right angle--front mounting
10.Waterproof cable docking model
11.Waterproof panel mount model
12.Panel mounting model with right angle--rear mounting
